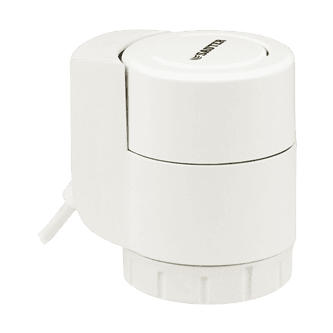

Features
• Fitted to the valve using no force thanks to the Low-Force-Locking (LFL) connector
• Fitted onto the valve with M30 × 1.5 thread, with automatic adjustment of closing dimension
• With 24 V~ thermal expansion element and accurate continuous input
• Large, visible position indicator
• NC “normally closed” and NO “normally open” versions
• Choice of direction of operation, 0(2)…10 V or 10…(2)0 V and split-range function, 0…4.5 V or 5.5…10 V
• Position monitoring with inductive, non-wearing sensor; does not require periodic recalibration
• Silent and maintenance-free
• Modular electrical plug connection (various cable lengths and types)
• Connected to valve with plastic bayonet connection
• Suitable for retrofitting existing installations without an adapter
• Fitting in any position, including upside down
Type Features AXT201F110 White version 230 V, NC, neutral, incl. raised M30 × 1.5 bayonet nut, cable 0.8 m
AXT201F112 White version 24 V, NC, incl. raised M30 × 1.5 bayonet nut, cable 1 m
AXT211F100 White version 230 V, NC, without cable, pack of one
AXT211F100B Black version 230 V, NC, without cable, pack of one
AXT211F102 White version 24 V, NC, without cable, pack of one
AXT211F102B Black version 24 V, NC, without cable, pack of one
AXT211F110 White version 230 V, NC, cable 1 m
AXT211F110B Black version 230 V, NC, cable 1 m
AXT211F110M White version 230 V, NC, with manual adjustment, cable 1 m
AXT211F112 White version 24 V, NC, cable 1 m
AXT211F112B Black version 24 V, NC, cable 1 m
AXT211F112M White version 24 V, NC, with manual adjustment, cable 1 m
AXT211F190 White version 230 V, NC, packing unit 50 pcs, without cable
AXT211F192 White version 24 V, NC, packing unit 50 pcs, without cable
AXT211F200 White version 230 V, NO, without cable, pack of one
AXT211F202 White version 24 V, NO, without cable, pack of one
AXT211F210 White version 230 V, NO, cable 1 m
AXT211F212 White version 24 V, NO, cable 1 m
AXT211HF110 White version 230 V, NC, with auxiliary contacts, cable 1 m
AXT211HF210 White version 230 V, NO, with auxiliary contacts, cable 1 m
AXT211HF112 White version 24 V, NC, with auxiliary contacts, cable 1 m
AXT211HF212 White version 24 V, NO, with auxiliary contacts, cable 1 m

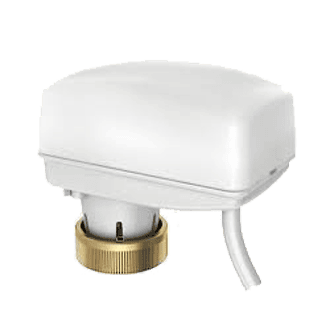

AXM217F200 230 V~, ±10%, 50...60 Hz 6.5 VA, 2 W II (IEC 60730)
AXM217F202 24 V~, ±15%, (50...60 Hz) 2.5 VA, 1.5 W III (IEC 60730)
AXS215SF122 115 N NC AXS215SF122B 115 N NC
AXS215SF222 110 N NO AXS215SF222B 110 N NO
